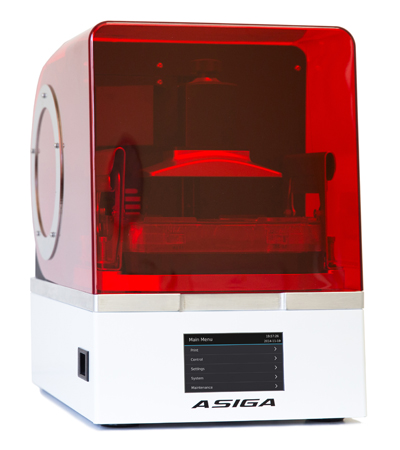

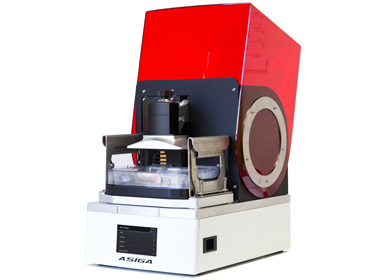

MAX / MAX UV
The Asiga MAX is the world's most advanced lab 3D printer offering exceptional productivity in a small footprint.
Product Overview
62µm Print Precision
Optimized for both dental and audio lab or clinic environments.

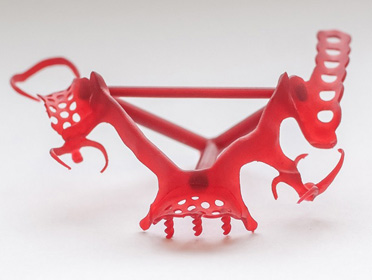

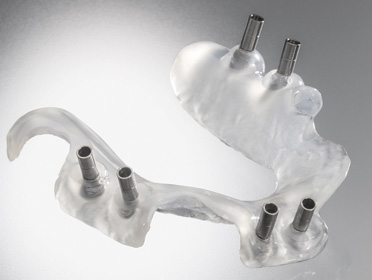

Digital Dentistry
The Asiga MAX is the world's most advanced lab 3D printer offering exceptional productivity in a small footprint.
After extensive internal testing of a variety of 3D printing systems, the Asiga MAX UV is clearly one of the best desktop 3D printers in terms of print quality and consistency for the tested dental indications.
-Alex Pilet, Head of Advanced Technologies

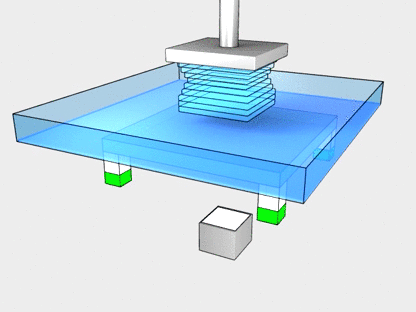

SPS™ Smart-Positioning-System Technology
Asiga's unique SPS™ process guarantees every layer is formed accurately. Accurate layer formation is the key to achieving consistently accurate results in any production environment.
« SPS™ - How it Works

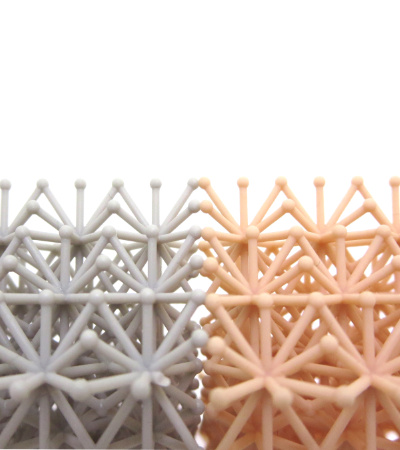

Open Material System
Select from a range of Asiga materials with the added benefit of using any material from any manufacturer. Over 380 materials available.
Why 385nm UV LEDs?
3D printing materials cure faster at deeper UV wavelengths (385nm) reducing XY scattering and over-cure. The result is consistent accuracy, production reliability and the ability to process water-clear materials.
GN ReSound is a global leader in intelligent audio solutions and we print with confidence on the Asiga MAX UV.
-Mehdi Hoorzad, Process Development Director

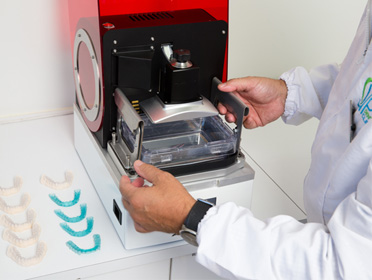

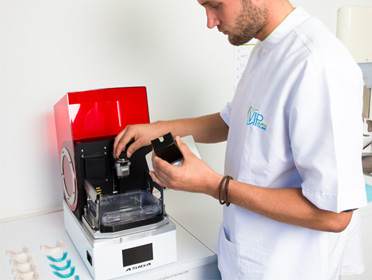

Fastest Material Changeover
The fastest material change over than any other product on the market. Complete in under 30 seconds.
Audiology Lab Production
Suited to the manufacture of earshells, earmoulds and silicone earmoulds.
Single Point Calibration
Simple platform calibration and internal radiometer for automatic LED calibration.
Trusted by Laboratories Globally
Build to perform in the most challenging production environments.
Free and Unlimited Lifetime Technical Support
Guaranteed.
Affordable Digital Manufacturing
It's something Asiga invented.
| Product specification | |
| Build Volume X, Y, Z | 119 × 67 × 75mm 4.69 × 2.64 × 2.95 inches |
| Pixel Resolution | 62µm |
| Technology | DLP |
| LED Wavelength | 385nm (high power UV LED) or 405nm |
| Material Compatibility | Asiga materials, 100% Open Material System — use any suitable third party material |
| Software | Asiga Composer software. Lifetime updates included |
| File Inputs | STL, SLC, PLY, STM (Asiga Stomp file format) |
| Network Compatibility | Wifi, Wireless Direct, Ethernet |
| Power Requirements | 100 to 240 VAC, 50/60 Hz, ≤2 Amps |
| System Sizing | 260 × 385 × 370mm / 19.3 kg 10.2 × 15.2 × 14.5 inches / 42.6 lb |
| Packed Sizing | 410 × 500 × 480mm / 21.6 kg 16.1 × 19.7 × 18.9 inches / 47.6 lb |
| Warranty | 12 months manufacturer's warranty |
| Technical Support | Unlimited lifetime technical support included |
| Bundle Includes | 3D printer, Composer software, 1 kg Asiga material, 1L build tray, Asiga Flash post-curing chamber, calibration toolkit |

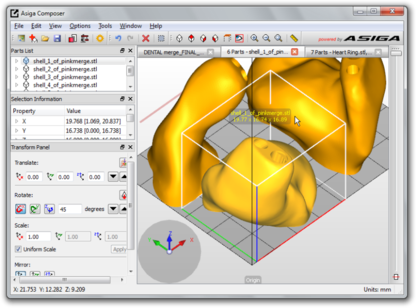

Composer
Composer is the software interface to all our 3D Printers. Powerful, intuitive and free.

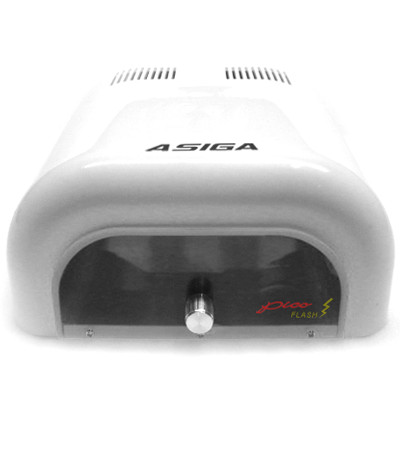

Asiga Flash
A compact post curing device for curing parts after printing.

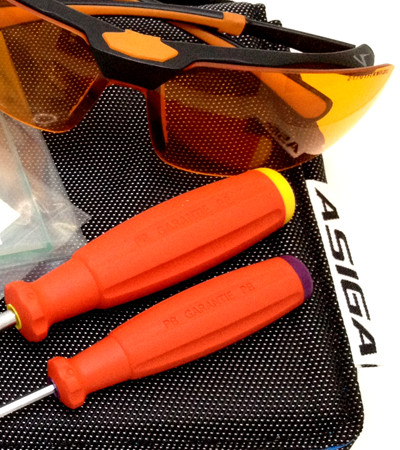

Calibration Toolkit
All the tools you need to calibrate your Asiga 3D printer.

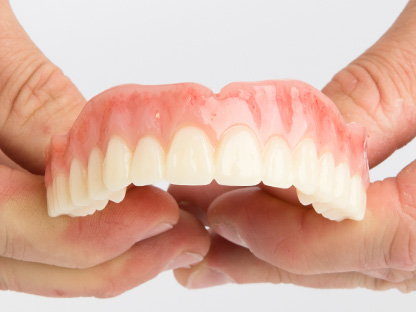

Material Pack
1L Asiga material pack included. Material pack consists of 1L material bottle and 1L build tray.
